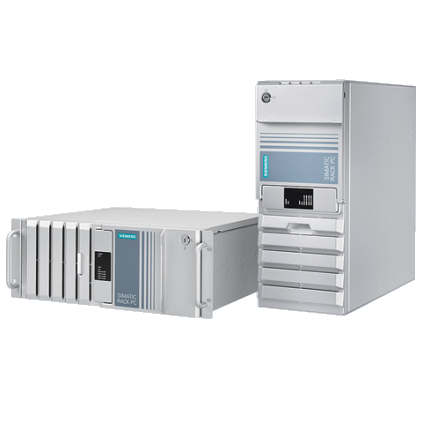

Máy tính công nghiệp dòng RACK-PC

In Stock

Shared industrial functionality of the IPC series 547, 647 and 847

  • Maximum system performance for complex automation tasks and computationally intensive PC tasks in the industrial environment through use of Intel Core processors
  • Designed for 24-hour continuous operation
  • Monitoring and diagnostics functions (e.g. temperature, fan, watchdog)
  • RAID1 configuration (mirrored drives), optionally in hot swap drive bays
  • Hard disks with capacities up to 1 TB for large volumes of data
  • SSD (solid-state drive), also as RAID1 configuration, optional
  • Redundant AC power supply, optional
  • Compact dimensions for installation in control cabinets only 500 mm deep
  • Dust protection thanks to overpressure ventilation concept with fan on the front and dust filter
  • Lockable front door
  • Service-friendly equipment design due to prepared telescopic rail mounting
  • Service-friendly device design due, for example, to the replacement of filters/fans from the front without the need for tools, or opening of the enclosure with just one screw
  • Universal implementation as an industrial workstation or server
  • Operating system pre-installed and activated for fast startup
  • Fast restoration of the delivery status of the HDD thanks to restore DVD
  • High flexibility and expandability of components
  • PCI and PCI Express expansion slots
  • Independent industrial product design
Compare

Mô tả

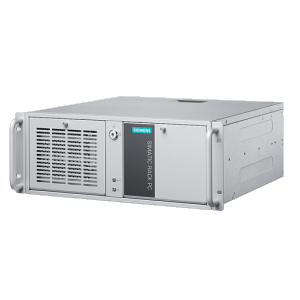

1. SIMATIC IPC347E (RACK PC, 19″, 4U)

Processor: Intel Pentium Dual Core G3420 (2C/2T, 3.2 GHz) ; Intel Core i5-4570S (4C/4T, 2.9 (3.6) GHz)

Interface: Ethernet 2 x Realtek
10/100/1000 Mbps (RJ45) ; USB 3.0 (high current) 2 x at the rear ; USB 2.0 (high current) 5 x, 2 of which at front 1 x internal, 2 x at the rear

HDD: 500 GB HDD

RAM: DDR3-SDRAM, 2-4 GB (pre-installed), support up to 16 GB

Graphic: 1x DVI-D, 1x VGA

Hardware configuaration: 1x PCI Express x16 (16 lanes), 1x PCI Express x8 (2 lanes), 1x PCI x1 (1 lane), 4x PCI

2. SIMATIC IPC547G (RACK PC, 19″, 4U)

Processor: • Intel Xeon E3-1275 v5 (4C/8T, 3.6 (4.0) GHz), Intel Core i7-6700
(4C/8T, 3.4 (4.0) GHz), Intel Core i5-6500
(4C/4T, 3.2 (3.6) GHz), Intel Pentium G4400 (2C/2T, 3.3 GHz)Interface: Ethernet 2x Intel 10/100/1000 Mbps (RJ45); USB 3.0 6x or 4x, 2 of which at front; USB 2.0 4x rear-mounted,
1x internal e.g. for USB dongle (with optional lock); VGA optionally via DP adapter cableHDD:

RAM: 4 GB, expandable up to 64 GB, Dual or single channel, DDR4-2133 SDRAM

Graphic: 1x or 2x DisplayPort, 1x DVI-D, 1x VGA (via DP adapter cable, optional); card PCI Express x16 (2 x VGA or 2 x DVI-D)(optional)

Hardware configuaration: 1x PCI Express x16 (16 lanes), 1x PCI Express x16(4 lanes), 1x PCI Express x8 (1 lane), 1x PCI Express x4(4 lanes), 1x PCI Express x4(1 lane), 2x PCI or 1x PCI Express x16 (16 lanes), 1x PCI Express x16 (1 lane), 1x PCI Express x8 (1 lane), 2x PCI Express x4 (1 lane), 2x PCI 1x or 2x DisplayPort 1x DVI-D 1x VGA (via DP adapter cable, optional)

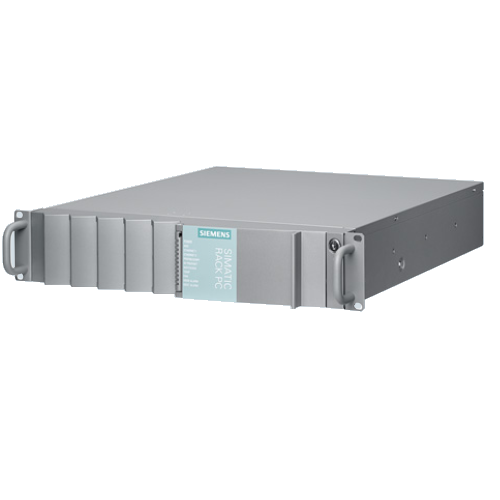

3. SIMATIC IPC647D (RACK PC, 19″, 2U)

SIMATIC IPC647D (RACK PC, 19″, 2 U)

Processor: CORE i3, CORE i5(2C/4T, 2.7 (3.3) GHz, 4 MB cache, TB, VT-x, VT-d, AMT), XEON e3(4C/8T, 2.3 (3.3) GHz, 8 MB cache,TB, VT-d, AMT)

Interface: 2x GBIT LAN (RJ45);1x DVI-I;2x DisplayPort;1x COM; 2x PS/2; audio; 2x USB 3.0, 2x USB 2.0 at rear; 1x USB 3.0,1x USB 2.0 at front, 1x USB 3.0 internal; temperature and fan monitoring, watchdog, card retainer ;

HDD/SSD:500 GB HDD SATA – 2×1 TB HDD SATA, 240Mb SSD- RAID1 2x 240MB SSD

RAM: 2 GB to 32 GB DDR3 1600 DIMM, ECC optional

Graphics controller: Onboard graphics controller, Intel HD 4600 Graphics integrated, into the processor / PCI-Express, graphics card (Dual Head: 2x VGA or 2x DVI-D), in the PCIe (x16) slot (optional)

Hardware configuaration: 2x PCIe mech. (x16) (4 lanes) or 4x PCIe mech. (x16) (4 lanes / 8 lanes depending on slot) or 2x PCI, 2x PCIe mech. (x16) (8 lanes); all modules to a length of 312 mm, can be used

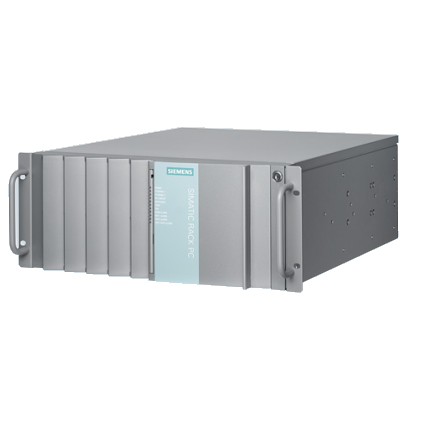

4. SIMATIC IPC847D (RACK PC, 19″, 4U)

Processor: Core i3-4330TE (2C/4T, 2.4 GHz, 4 MB cache, VT-x); Core i5-4570TE (2C/4T, 2.7 (3.3) GHz, 4 MB cache, VT-d, AMT); Xeon E3-1268L v3 (4C/8T, 2.3 (3.3) GHz, 8 MB cache, VT-d, AMT) Chipset Intel DH82C226 PCH

Interfaces: 2x GBIT LAN (RJ45); 1x DVI-I; 2x DisplayPort; 1x COM; 2x PS/2; audio; 2x USB 3.0, 2x USB 2.0 at rear; 1x USB 3.0, 1x USB 2.0 at front,1x USB 3.0 internal; temperature and fan monitoring, watchdog, card retainer

HHD/SSD: 500 GB HDD, 1 TB HDD, 2x 1 TB HDD, RAID1 (2x 1 TB HDD, mirror disks), RAID1 (2x 1 TB HDD, mirror disks) + 1x 1 TB HDD as hot spare, RAID5 (3x 1 TB HDD, striping with parity), RAID5 (3x 1 TB HDD, striping with parity) + 1x 1 TB HDD as hot spare; RAID1 (2x 1 TB HDD SAS, mirror disks), RAID5 (3x 1 TB HDD SAS, striping with parity), RAID5 (3x 1 TB HDD SAS, striping with parity) +1x 1 TB HDD SAS as hot spare incl. PCIe (x8) RAID SAS controller incl. ZMCP module ; 240 GB SSD; RAID1, (2x 240 GB SSD, mirror disks)

RAM: 2 GB to 32 GB DDR3 1600 DIMM, ECC optional

Graphics controller: Intel HD 4600 Graphics integrated into the processor / PCI-Express graphics card (Dual Head: 2x VGA or 2x DVI-D) in the PCIe (x16) slot (optional)

Hardware configuaration: 11 slots: 7x PCI, 3x PCIe (x4) (1 lane), 1x PCIe (x16) or 3x PCI, 5x PCIe mech. (x16) (4x 4 lanes, 1x 8 lanes), 3x PCIe (x4); all modules to a length of 312 mm can be used
