SCALANCE X-100 unmanaged
SCALANCE X-100 unmanaged
SCALANCE X-100 unmanaged
|

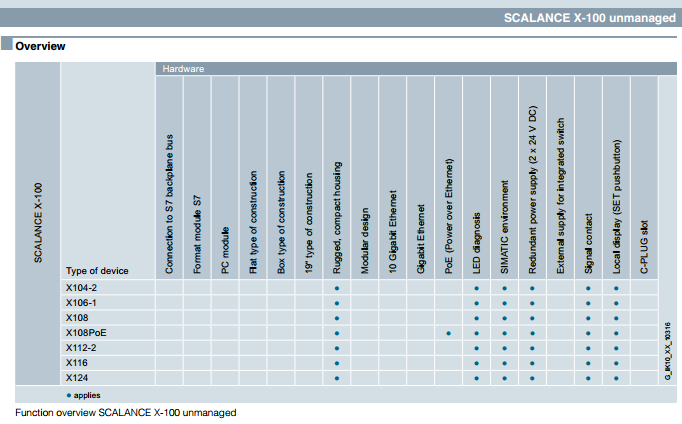

SCALANCE X104-2 / SCALANCE X106-1 / SCALANCE X112-2 • Construction of optical Industrial Ethernet line or star topologies: – SCALANCE X104-2; with 4 electrical ports and 2 optical ports – SCALANCE X106-1; with 6 electrical ports and 1 optical port – SCALANCE X112-2; with 12 electrical ports and 2 optical ports • Diagnostics on the device using LEDs (power, link status, data traffic) and signaling contact (alarm screen form can be set using a button on the device) • The RJ45 ports are suitable for industrial use and have additional retaining collars: optimized for connecting the IE FC RJ45 Plug 180SCALANCE X108 / SCALANCE X108PoE / SCALANCE X116 / SCALANCE X124 • Construction of electrical Industrial Ethernet star and line topologies – SCALANCE X108 with eight electrical ports – SCALANCE X108PoE with eight electrical ports, two of which have Power-overEthernet functionality – SCALANCE X116 with 16 electrical ports – SCALANCE X124 with 24 electrical ports • Diagnostics on the device using LEDs (power, link status, data traffic) and signaling contact (alarm screen form can be set using a button on the device) • The RJ45 ports are suitable for industrial use and have additional retaining collars: optimized for connecting the IE FC RJ45 Plug 180 |

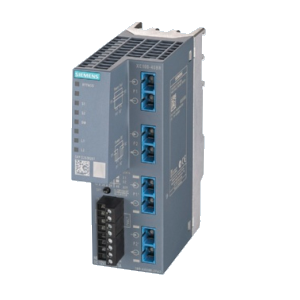

SCALANCE XC-100 unmanaged
|
• A 4-pole terminal block for connecting the redundant supply voltage (2 x 12 V DC … 48 V DC) • A 2-pole terminal block for connecting the floating signaling contact • A 2-pole terminal block for connecting the digital input signal (switching signal)SCALANCE XC100-4OBR with multimode fiber optic ports • For establishing optical multimode fiber optic line or ring topologies with four optical SC ports and TAP function for quickly establishing links SCALANCE XC100-4OBR with singlemode fiber optic ports • For establishing optical singlemode fiber optic line topologies with four optical SC ports and low throughput attenuation in the optical relay • For establishing optical singlemode fiber optic line or ring topologies with four optical SC ports and TAP function for quickly establishing links SCALANCE XC100-4OBR, SM, line topology • For establishing optical singlemode fiber optic line topologies with four optical SC ports and low throughput attenuation in the optical relay without TAP function |
